4.2 CUDA 图（CUDA Graphs）

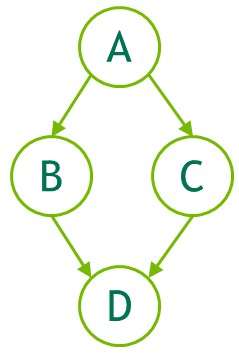

cudaGraph_t graph;
cudaGraphCreate(&graph, 0);

cudaGraphNode_t kernelNode;
cudaKernelNodeParams kernelParams = {0};
kernelParams.func = (void*)kernel;
kernelParams.gridDim = dim3(1, 1, 1);
kernelParams.blockDim = dim3(1, 1, 1);
kernelParams.sharedMemBytes = 0;
kernelParams.kernelParams = nullptr;
cudaGraphAddKernelNode(&kernelNode, graph, nullptr, 0, &kernelParams);

cudaStream_t stream;
cudaStreamCreate(&stream);

cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
kernel<<<1, 1, 0, stream>>>();
cudaStreamEndCapture(stream, &graph);

cudaStreamBeginCapture(stream1, cudaStreamCaptureModeGlobal);
kernel1<<<1, 1, 0, stream1>>>();
cudaEventRecord(event, stream1);

cudaStreamBeginCapture(stream2, cudaStreamCaptureModeGlobal);
cudaStreamWaitEvent(stream2, event);
kernel2<<<1, 1, 0, stream2>>>();

cudaStreamEndCapture(stream1, &graph1);
cudaStreamEndCapture(stream2, &graph2);

cudaStream_t stream;
cudaStreamCreate(&stream);

cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
kernel1<<<grid, block, 0, stream>>>(d_data);
kernel2<<<grid, block, 0, stream>>>(d_data);
cudaMemcpyAsync(h_data, d_data, bytes, cudaMemcpyDeviceToHost, stream);

cudaGraph_t graph;
cudaStreamEndCapture(stream, &graph);

cudaGraphExec_t graphExec;
cudaGraphInstantiate(&graphExec, graph, nullptr, nullptr, 0);
cudaGraphLaunch(graphExec, stream);

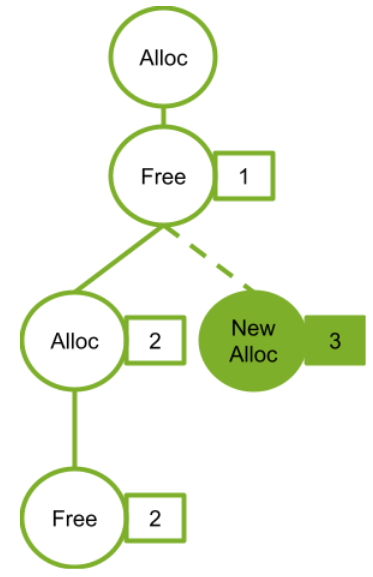

cudaGraphNodeParams allocNodeParams = { cudaGraphNodeTypeMemAlloc };
allocNodeParams.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
allocNodeParams.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
// specify device 1 as the resident device
allocNodeParams.alloc.poolProps.location.id = 1;
allocNodeParams.alloc.bytesize = size;

// allocate an allocation resident on device 1 accessible from device 1
cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &allocNodeParams);

accessDescs[2];
// boilerplate for the access descs (only ReadWrite and Device access supported by the add node api)
accessDescs[0].flags = cudaMemAccessFlagsProtReadWrite;
accessDescs[0].location.type = cudaMemLocationTypeDevice;
accessDescs[1].flags = cudaMemAccessFlagsProtReadWrite;
accessDescs[1].location.type = cudaMemLocationTypeDevice;

// access being requested for device 0 & 2. Device 1 access requirement left implicit.
accessDescs[0].location.id = 0;
accessDescs[1].location.id = 2;

// access request array has 2 entries.
allocNodeParams.accessDescCount = 2;
allocNodeParams.accessDescs = accessDescs;

// allocate an allocation resident on device 1 accessible from devices 0, 1 and 2. (0 & 2 from the descriptors, 1 from it being the resident device).
cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &allocNodeParams);

// boilerplate for the access descs (only ReadWrite and Device access supported by the add node api)
accessDesc.flags = cudaMemAccessFlagsProtReadWrite;
accessDesc.location.type = cudaMemLocationTypeDevice;
accessDesc.location.id = 1;

// let memPool be resident and accessible on device 0

cudaStreamBeginCapture(stream);
cudaMallocAsync(&dptr1, size, memPool, stream);
cudaStreamEndCapture(stream, &graph1);

cudaMemPoolSetAccess(memPool, &accessDesc, 1);

cudaStreamBeginCapture(stream);
cudaMallocAsync(&dptr2, size, memPool, stream);
cudaStreamEndCapture(stream, &graph2);

//The graph node allocating dptr1 would only have the device 0 accessibility even though memPool now has device 1 accessibility.
//The graph node allocating dptr2 will have device 0 and device 1 accessibility, since that was the pool accessibility at the time of the cudaMallocAsync call.

cudaGraphExec_t graphExec = NULL;

for (int i = 0; i < 10; i++) {
    cudaGraph_t graph;
    cudaGraphExecUpdateResult updateResult;
    cudaGraphNode_t errorNode;

    // In this example we use stream capture to create the graph.
    // You can also use the Graph API to produce a graph.
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);

    // Call a user-defined, stream based workload, for example
    do_cuda_work(stream);

    cudaStreamEndCapture(stream, &graph);

    // If we've already instantiated the graph, try to update it directly
    // and avoid the instantiation overhead
    if (graphExec != NULL) {
        // If the graph fails to update, errorNode will be set to the
        // node causing the failure and updateResult will be set to a
        // reason code.
        cudaGraphExecUpdate(graphExec, graph, &errorNode, &updateResult);
    }

    // Instantiate during the first iteration or whenever the update
    // fails for any reason
    if (graphExec == NULL || updateResult != cudaGraphExecUpdateSuccess) {

        // If a previous update failed, destroy the cudaGraphExec_t
        // before re-instantiating it
        if (graphExec != NULL) {
            cudaGraphExecDestroy(graphExec);
        }
        // Instantiate graphExec from graph. The error node and
        // error message parameters are unused here.
        cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    }

    cudaGraphDestroy(graph);
    cudaGraphLaunch(graphExec, stream);
    cudaStreamSynchronize(stream);
}

__global__ void setHandle(cudaGraphConditionalHandle handle, int value)
{
    ...
    // Set the condition value to the value passed to the kernel
    cudaGraphSetConditional(handle, value);
    ...
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];
    int value = 1;

    // Create the graph
    cudaGraphCreate(&graph, 0);

    // Create the conditional handle; because no default value is provided, the condition value is undefined at the start of each graph execution
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph);

    // Use a kernel upstream of the conditional to set the handle value
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)setHandle;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &value;
    cudaGraphAddNode(&node, graph, NULL, 0, &params);

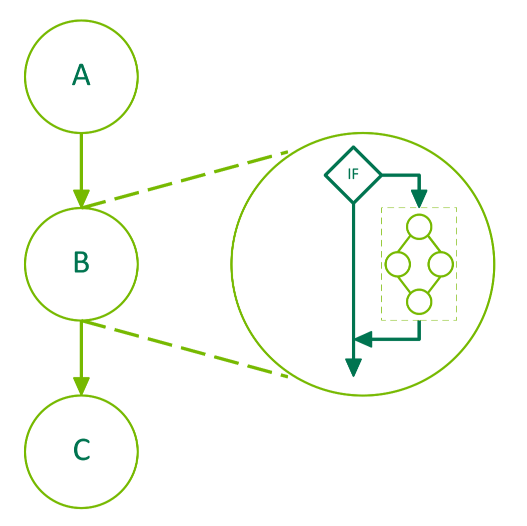

    // Create and add the conditional node
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeIf;
    cParams.conditional.size   = 1; // There is only an "if" body graph
    cudaGraphAddNode(&node, graph, &node, 1, &cParams);

    // Get the body graph of the conditional node
    cudaGraph_t bodyGraph = cParams.conditional.phGraph_out[0];

    // Populate the body graph of the IF conditional node
    ...
    cudaGraphAddNode(&node, bodyGraph, NULL, 0, &params);

    // Instantiate and launch the graph
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // Clean up
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];
    int value = 1;

    // Create the graph
    cudaGraphCreate(&graph, 0);

    // Create the conditional handle; because no default value is provided, the condition value is undefined at the start of each graph execution
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph);

    // Use a kernel upstream of the conditional to set the handle value
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)setHandle;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &value;
    cudaGraphAddNode(&node, graph, NULL, 0, &params);

    // Create and add the IF conditional node
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeIf;
    cParams.conditional.size   = 2; // There is both an "if" and an "else" body graph
    cudaGraphAddNode(&node, graph, &node, 1, &cParams);

    // Get the body graphs of the conditional node
    cudaGraph_t ifBodyGraph = cParams.conditional.phGraph_out[0];
    cudaGraph_t elseBodyGraph = cParams.conditional.phGraph_out[1];

    // Populate the body graphs of the IF conditional node
    ...
    cudaGraphAddNode(&node, ifBodyGraph, NULL, 0, &params);
    ...
    cudaGraphAddNode(&node, elseBodyGraph, NULL, 0, &params);

    // Instantiate and launch the graph
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // Clean up
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
}

__global__ void loopKernel(cudaGraphConditionalHandle handle, char *dPtr)
{
   // Decrement the value of dPtr and set the condition value to 0 once dPtr is 0
   if (--(*dPtr) == 0) {
      cudaGraphSetConditional(handle, 0);
   }
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];

    // Allocate a byte of device memory to use as input
    char *dPtr;
    cudaMalloc((void **)&dPtr, 1);

    // Create the graph
    cudaGraphCreate(&graph, 0);

    // Create the conditional handle with a default value of 1
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph, 1, cudaGraphCondAssignDefault);

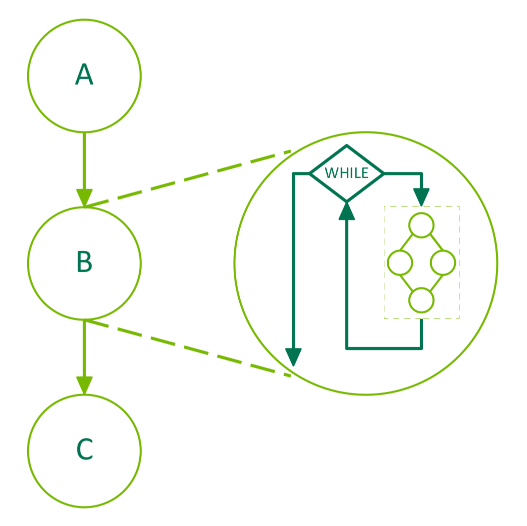

    // Create and add the WHILE conditional node
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeWhile;
    cParams.conditional.size   = 1;
    cudaGraphAddNode(&node, graph, NULL, 0, &cParams);

    // Get the body graph of the conditional node
    cudaGraph_t bodyGraph = cParams.conditional.phGraph_out[0];

    // Populate the body graph of the conditional node
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)loopKernel;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &dPtr;
    cudaGraphAddNode(&node, bodyGraph, NULL, 0, &params);

    // Initialize device memory, instantiate, and launch the graph
    cudaMemset(dPtr, 10, 1); // Set dPtr to 10; the loop will run until dPtr is 0
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // Clean up
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
    cudaFree(dPtr);
}

__global__ void setHandle(cudaGraphConditionalHandle handle, int value)
{
    ...
    // Set the condition value to the value passed to the kernel
    cudaGraphSetConditional(handle, value);
    ...
}

void graphSetup() {
    cudaGraph_t graph;
    cudaGraphExec_t graphExec;
    cudaGraphNode_t node;
    void *kernelArgs[2];
    int value = 1;

    // Create the graph
    cudaGraphCreate(&graph, 0);

    // Create the conditional handle; because no default value is provided, the condition value is undefined at the start of each graph execution
    cudaGraphConditionalHandle handle;
    cudaGraphConditionalHandleCreate(&handle, graph);

    // Use a kernel upstream of the conditional to set the handle value
    cudaGraphNodeParams params = { cudaGraphNodeTypeKernel };
    params.kernel.func = (void *)setHandle;
    params.kernel.gridDim.x = params.kernel.gridDim.y = params.kernel.gridDim.z = 1;
    params.kernel.blockDim.x = params.kernel.blockDim.y = params.kernel.blockDim.z = 1;
    params.kernel.kernelParams = kernelArgs;
    kernelArgs[0] = &handle;
    kernelArgs[1] = &value;
    cudaGraphAddNode(&node, graph, NULL, 0, &params);

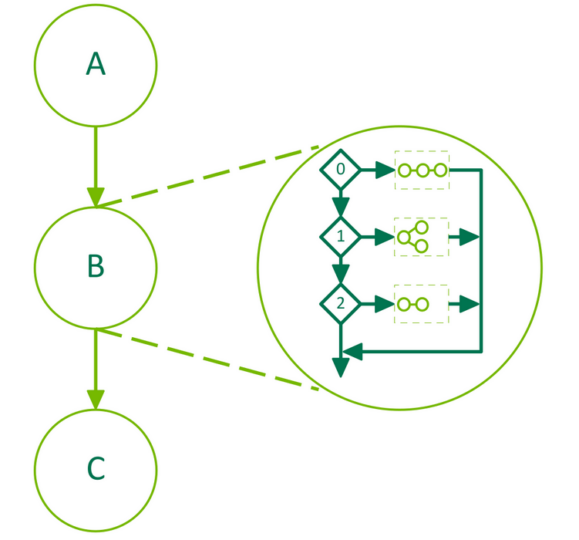

    // Create and add the conditional SWITCH node
    cudaGraphNodeParams cParams = { cudaGraphNodeTypeConditional };
    cParams.conditional.handle = handle;
    cParams.conditional.type   = cudaGraphCondTypeSwitch;
    cParams.conditional.size   = 5;
    cudaGraphAddNode(&node, graph, &node, 1, &cParams);

    // Get the body graphs of the conditional node
    cudaGraph_t *bodyGraphs = cParams.conditional.phGraph_out;

    // Populate the body graphs of the SWITCH conditional node
    ...
    cudaGraphAddNode(&node, bodyGraphs[0], NULL, 0, &params);
    ...
    cudaGraphAddNode(&node, bodyGraphs[4], NULL, 0, &params);

    // Instantiate and launch the graph
    cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
    cudaGraphLaunch(graphExec, 0);
    cudaDeviceSynchronize();

    // Clean up
    cudaGraphExecDestroy(graphExec);
    cudaGraphDestroy(graph);
}

cudaGraph_t graph;
cudaGraphCreate(&graph, 0);

cudaGraphNode_t allocNode;
cudaMemAllocNodeParams allocParams = {};
allocParams.bytesize = bytes;
allocParams.poolProps.allocType = cudaMemAllocationTypePinned;
allocParams.poolProps.location.type = cudaMemLocationTypeDevice;
allocParams.poolProps.location.id = device;
cudaGraphAddMemAllocNode(&allocNode, graph, nullptr, 0, &allocParams);

cudaGraphNode_t kernelNode;
cudaKernelNodeParams kernelParams = {};
kernelParams.func = (void *)kernel;
kernelParams.gridDim = grid;
kernelParams.blockDim = block;
kernelParams.kernelParams = args;
cudaGraphAddKernelNode(&kernelNode, graph, &allocNode, 1, &kernelParams);

cudaGraphNode_t freeNode;
cudaGraphAddMemFreeNode(&freeNode, graph, &kernelNode, 1, allocParams.dptr);

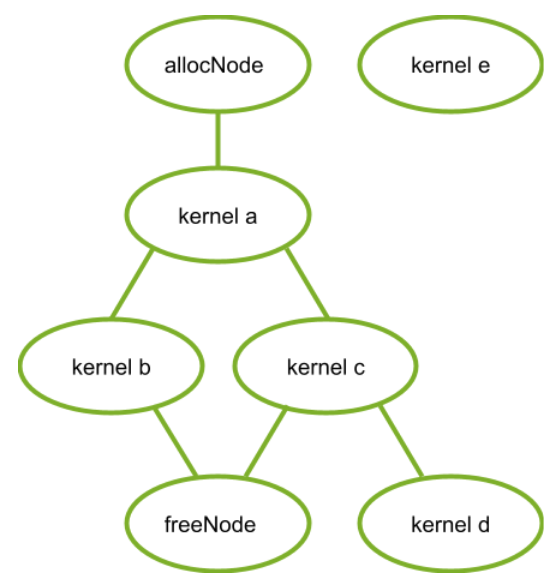

// Create the graph - it starts out empty
cudaGraphCreate(&graph, 0);

// parameters for a basic allocation
cudaGraphNodeParams params = { cudaGraphNodeTypeMemAlloc };
params.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
params.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
// specify device 0 as the resident device
params.alloc.poolProps.location.id = 0;
params.alloc.bytesize = size;

cudaGraphAddNode(&allocNode, graph, NULL, NULL, 0, &params);

// create a kernel node that uses the graph allocation
cudaGraphNodeParams nodeParams = { cudaGraphNodeTypeKernel };
nodeParams.kernel.kernelParams[0] = params.alloc.dptr;
// ...set other kernel node parameters...

// add the kernel node to the graph
cudaGraphAddNode(&a, graph, &allocNode, NULL, 1, &nodeParams);
cudaGraphAddNode(&b, graph, &a, NULL, 1, &nodeParams);
cudaGraphAddNode(&c, graph, &a, NULL, 1, &nodeParams);
cudaGraphNode_t dependencies[2];
// kernel nodes b and c are using the graph allocation, so the freeing node must depend on them. Since the dependency of node b on node a establishes an indirect dependency, the free node does not need to explicitly depend on node a.
dependencies[0] = b;
dependencies[1] = c;
cudaGraphNodeParams freeNodeParams = { cudaGraphNodeTypeMemFree };
freeNodeParams.free.dptr = params.alloc.dptr;
cudaGraphAddNode(&freeNode, graph, dependencies, NULL, 2, freeNodeParams);
// free node does not depend on kernel node d, so it must not access the freed graph allocation.
cudaGraphAddNode(&d, graph, &c, NULL, 1, &nodeParams);

// node e does not depend on the allocation node, so it must not access the allocation. This would be true even if the freeNode depended on kernel node e.
cudaGraphAddNode(&e, graph, NULL, NULL, 0, &nodeParams);

cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
void *ptr = nullptr;
cudaMallocAsync(&ptr, bytes, stream);
kernel<<<grid, block, 0, stream>>>((float *)ptr);
cudaFreeAsync(ptr, stream);
cudaStreamEndCapture(stream, &graph);

cudaMallocAsync(&dptr, size, stream1);
kernel_A<<< ..., stream1 >>>(dptr, ...);

// Fork into stream2
cudaEventRecord(event1, stream1);
cudaStreamWaitEvent(stream2, event1);

kernel_B<<< ..., stream1 >>>(dptr, ...);
// event dependencies translated into graph dependencies, so the kernel node created by the capture of kernel C will depend on the allocation node created by capturing the cudaMallocAsync call.
kernel_C<<< ..., stream2 >>>(dptr, ...);

// Join stream2 back to origin stream (stream1)
cudaEventRecord(event2, stream2);
cudaStreamWaitEvent(stream1, event2);

// Free depends on all work accessing the memory.
cudaFreeAsync(dptr, stream1);

// End capture in the origin stream
cudaStreamEndCapture(stream1, &graph);

// Contents of allocating graph
void *dptr;
cudaGraphNodeParams params = { cudaGraphNodeTypeMemAlloc };
params.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
params.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
params.alloc.bytesize = size;
cudaGraphAddNode(&allocNode, allocGraph, NULL, NULL, 0, &params);
dptr = params.alloc.dptr;

cudaGraphInstantiate(&allocGraphExec, allocGraph, NULL, NULL, 0);

cudaGraphLaunch(allocGraphExec, stream);
kernel<<< ..., stream >>>(dptr, ...);
cudaFreeAsync(dptr, stream);

// Contents of allocating graph
void *dptr;

// Contents of allocating graph
cudaGraphAddNode(&allocNode, allocGraph, NULL, NULL, 0, &allocNodeParams);
dptr = allocNodeParams.alloc.dptr;

// contents of consuming/freeing graph
kernelNodeParams.kernel.kernelParams[0] = allocNodeParams.alloc.dptr;
cudaGraphAddNode(&freeNode, freeGraph, NULL, NULL, 1, dptr);

cudaGraphInstantiate(&allocGraphExec, allocGraph, NULL, NULL, 0);
cudaGraphInstantiate(&freeGraphExec, freeGraph, NULL, NULL, 0);

cudaGraphLaunch(allocGraphExec, allocStream);

// establish the dependency of stream2 on the allocation node
// note: the dependency could also have been established with a stream synchronize operation
cudaEventRecord(allocEvent, allocStream);
cudaStreamWaitEvent(stream2, allocEvent);

kernel<<< ..., stream2 >>> (dptr, ...);

// establish the dependency between the stream 3 and the allocation use
cudaStreamRecordEvent(streamUseDoneEvent, stream2);
cudaStreamWaitEvent(stream3, streamUseDoneEvent);

// it is now safe to launch the freeing graph, which may also access the memory
cudaGraphLaunch(freeGraphExec, stream3);

// Contents of allocating graph
void *dptr;
cudaEvent_t allocEvent; // event indicating when the allocation will be ready for use.
cudaEvent_t streamUseDoneEvent; // event indicating when the stream operations are done with the allocation.

// Contents of allocating graph with event record node
cudaGraphAddNode(&allocNode, allocGraph, NULL, NULL, 0, &allocNodeParams);
dptr = allocNodeParams.alloc.dptr;
// note: this event record node depends on the alloc node

cudaGraphNodeParams allocEventNodeParams = { cudaGraphNodeTypeEventRecord };
allocEventNodeParams.eventRecord.event = allocEvent;
cudaGraphAddNode(&recordNode, allocGraph, &allocNode, NULL, 1, allocEventNodeParams);
cudaGraphInstantiate(&allocGraphExec, allocGraph, NULL, NULL, 0);

// contents of consuming/freeing graph with event wait nodes
cudaGraphNodeParams streamWaitEventNodeParams = { cudaGraphNodeTypeEventWait };
streamWaitEventNodeParams.eventWait.event = streamUseDoneEvent;
cudaGraphAddNode(&streamUseDoneEventNode, waitAndFreeGraph, NULL, NULL, 0, streamWaitEventNodeParams);

cudaGraphNodeParams allocWaitEventNodeParams = { cudaGraphNodeTypeEventWait };
allocWaitEventNodeParams.eventWait.event = allocEvent;
cudaGraphAddNode(&allocReadyEventNode, waitAndFreeGraph, NULL, NULL, 0, allocWaitEventNodeParams);

kernelNodeParams->kernelParams[0] = allocNodeParams.alloc.dptr;

// The allocReadyEventNode provides ordering with the alloc node for use in a consuming graph.
cudaGraphAddNode(&kernelNode, waitAndFreeGraph, &allocReadyEventNode, NULL, 1, &kernelNodeParams);

// The free node has to be ordered after both external and internal users.
// Thus the node must depend on both the kernelNode and the streamUseDoneEventNode.
dependencies[0] = kernelNode;
dependencies[1] = streamUseDoneEventNode;

cudaGraphNodeParams freeNodeParams = { cudaGraphNodeTypeMemFree };
freeNodeParams.free.dptr = dptr;
cudaGraphAddNode(&freeNode, waitAndFreeGraph, &dependencies, NULL, 2, freeNodeParams);
cudaGraphInstantiate(&waitAndFreeGraphExec, waitAndFreeGraph, NULL, NULL, 0);

cudaGraphLaunch(allocGraphExec, allocStream);

// establish the dependency of stream2 on the event node satisfies the ordering requirement
cudaStreamWaitEvent(stream2, allocEvent);
kernel<<< ..., stream2 >>> (dptr, ...);
cudaStreamRecordEvent(streamUseDoneEvent, stream2);

// the event wait node in the waitAndFreeGraphExec establishes the dependency on the "readyForFreeEvent" that is needed to prevent the kernel running in stream two from accessing the allocation after the free node in execution order.
cudaGraphLaunch(waitAndFreeGraphExec, stream3);

// Create producer graph which allocates memory and populates it with data
cudaStreamBeginCapture(cudaStreamPerThread, cudaStreamCaptureModeGlobal);
cudaMallocAsync(&data1, blocks * threads, cudaStreamPerThread);
cudaMallocAsync(&data2, blocks * threads, cudaStreamPerThread);
produce<<<blocks, threads, 0, cudaStreamPerThread>>>(data1, data2);
...
cudaStreamEndCapture(cudaStreamPerThread, &graph);
cudaGraphInstantiateWithFlags(&producer,
                              graph,
                              cudaGraphInstantiateFlagAutoFreeOnLaunch);
cudaGraphDestroy(graph);

// Create first consumer graph by capturing an asynchronous library call
cudaStreamBeginCapture(cudaStreamPerThread, cudaStreamCaptureModeGlobal);
consumerFromLibrary(data1, cudaStreamPerThread);
cudaStreamEndCapture(cudaStreamPerThread, &graph);
cudaGraphInstantiateWithFlags(&consumer1, graph, 0); //regular instantiation
cudaGraphDestroy(graph);

// Create second consumer graph
cudaStreamBeginCapture(cudaStreamPerThread, cudaStreamCaptureModeGlobal);
consume2<<<blocks, threads, 0, cudaStreamPerThread>>>(data2);
...
cudaStreamEndCapture(cudaStreamPerThread, &graph);
cudaGraphInstantiateWithFlags(&consumer2, graph, 0);
cudaGraphDestroy(graph);

// Launch in a loop
bool launchConsumer2 = false;
do {
    cudaGraphLaunch(producer, myStream);
    cudaGraphLaunch(consumer1, myStream);
    if (launchConsumer2) {
        cudaGraphLaunch(consumer2, myStream);
    }
} while (determineAction(&launchConsumer2));

cudaFreeAsync(data1, myStream);
cudaFreeAsync(data2, myStream);

cudaGraphExecDestroy(producer);
cudaGraphExecDestroy(consumer1);
cudaGraphExecDestroy(consumer2);

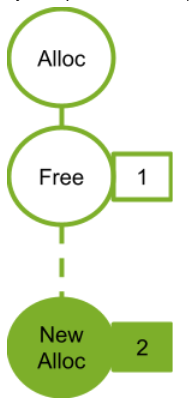

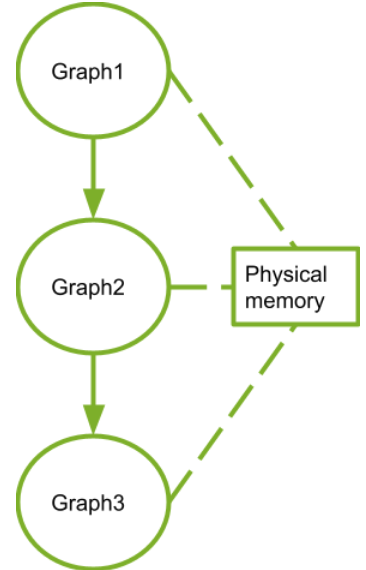

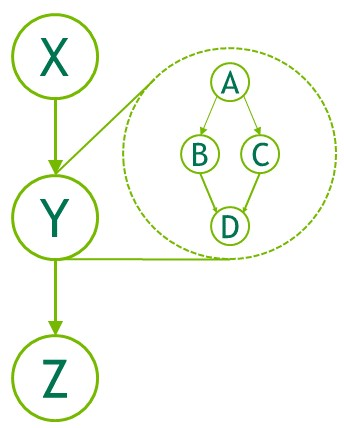

// Create the child graph
cudaGraphCreate(&child, 0);

// parameters for a basic allocation
cudaGraphNodeParams allocNodeParams = { cudaGraphNodeTypeMemAlloc };
allocNodeParams.alloc.poolProps.allocType = cudaMemAllocationTypePinned;
allocNodeParams.alloc.poolProps.location.type = cudaMemLocationTypeDevice;
// specify device 0 as the resident device
allocNodeParams.alloc.poolProps.location.id = 0;
allocNodeParams.alloc.bytesize = size;

cudaGraphAddNode(&allocNode, child, NULL, NULL, 0, &allocNodeParams);
// Additional nodes using the allocation could be added here
cudaGraphNodeParams freeNodeParams = { cudaGraphNodeTypeMemFree };
freeNodeParams.free.dptr = allocNodeParams.alloc.dptr;
cudaGraphAddNode(&freeNode, child, &allocNode, NULL, 1, freeNodeParams);

// Create the parent graph
cudaGraphCreate(&parent, 0);

// Move the child graph to the parent graph
cudaGraphNodeParams childNodeParams = { cudaGraphNodeTypeGraph };
childNodeParams.graph.graph = child;
childNodeParams.graph.ownership = cudaGraphChildGraphOwnershipMove;
cudaGraphAddNode(&parentNode, parent, NULL, NULL, 0, &childNodeParams);

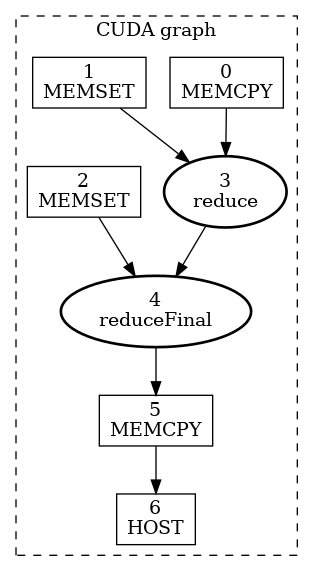

void cudaGraphsManual(float  *inputVec_h,
                      float  *inputVec_d,
                      double *outputVec_d,
                      double *result_d,
                      size_t  inputSize,
                      size_t  numOfBlocks)
{
   cudaStream_t                 streamForGraph;
   cudaGraph_t                  graph;
   std::vector<cudaGraphNode_t> nodeDependencies;
   cudaGraphNode_t              memcpyNode, kernelNode, memsetNode;
   double                       result_h = 0.0;

   cudaStreamCreate(&streamForGraph);

   cudaKernelNodeParams kernelNodeParams = {0};
   cudaMemcpy3DParms    memcpyParams     = {0};
   cudaMemsetParams     memsetParams     = {0};

   memcpyParams.srcArray = NULL;
   memcpyParams.srcPos   = make_cudaPos(0, 0, 0);
   memcpyParams.srcPtr   = make_cudaPitchedPtr(inputVec_h, sizeof(float) * inputSize, inputSize, 1);
   memcpyParams.dstArray = NULL;
   memcpyParams.dstPos   = make_cudaPos(0, 0, 0);
   memcpyParams.dstPtr   = make_cudaPitchedPtr(inputVec_d, sizeof(float) * inputSize, inputSize, 1);
   memcpyParams.extent   = make_cudaExtent(sizeof(float) * inputSize, 1, 1);
   memcpyParams.kind     = cudaMemcpyHostToDevice;

   memsetParams.dst         = (void *)outputVec_d;
   memsetParams.value       = 0;
   memsetParams.pitch       = 0;
   memsetParams.elementSize = sizeof(float); // elementSize can be max 4 bytes
   memsetParams.width       = numOfBlocks * 2;
   memsetParams.height      = 1;

   cudaGraphCreate(&graph, 0);
   cudaGraphAddMemcpyNode(&memcpyNode, graph, NULL, 0, &memcpyParams);
   cudaGraphAddMemsetNode(&memsetNode, graph, NULL, 0, &memsetParams);

   nodeDependencies.push_back(memsetNode);
   nodeDependencies.push_back(memcpyNode);

   void *kernelArgs[4] = {(void *)&inputVec_d, (void *)&outputVec_d, &inputSize, &numOfBlocks};

   kernelNodeParams.func           = (void *)reduce;
   kernelNodeParams.gridDim        = dim3(numOfBlocks, 1, 1);
   kernelNodeParams.blockDim       = dim3(THREADS_PER_BLOCK, 1, 1);
   kernelNodeParams.sharedMemBytes = 0;
   kernelNodeParams.kernelParams   = (void **)kernelArgs;
   kernelNodeParams.extra          = NULL;

   cudaGraphAddKernelNode(
      &kernelNode, graph, nodeDependencies.data(), nodeDependencies.size(), &kernelNodeParams);

   nodeDependencies.clear();
   nodeDependencies.push_back(kernelNode);

   memset(&memsetParams, 0, sizeof(memsetParams));
   memsetParams.dst         = result_d;
   memsetParams.value       = 0;
   memsetParams.elementSize = sizeof(float);
   memsetParams.width       = 2;
   memsetParams.height      = 1;
   cudaGraphAddMemsetNode(&memsetNode, graph, NULL, 0, &memsetParams);

   nodeDependencies.push_back(memsetNode);

   memset(&kernelNodeParams, 0, sizeof(kernelNodeParams));
   kernelNodeParams.func           = (void *)reduceFinal;
   kernelNodeParams.gridDim        = dim3(1, 1, 1);
   kernelNodeParams.blockDim       = dim3(THREADS_PER_BLOCK, 1, 1);
   kernelNodeParams.sharedMemBytes = 0;
   void *kernelArgs2[3]            = {(void *)&outputVec_d, (void *)&result_d, &numOfBlocks};
   kernelNodeParams.kernelParams   = kernelArgs2;
   kernelNodeParams.extra          = NULL;

   cudaGraphAddKernelNode(
      &kernelNode, graph, nodeDependencies.data(), nodeDependencies.size(), &kernelNodeParams);

   nodeDependencies.clear();
   nodeDependencies.push_back(kernelNode);

   memset(&memcpyParams, 0, sizeof(memcpyParams));

   memcpyParams.srcArray = NULL;
   memcpyParams.srcPos   = make_cudaPos(0, 0, 0);
   memcpyParams.srcPtr   = make_cudaPitchedPtr(result_d, sizeof(double), 1, 1);
   memcpyParams.dstArray = NULL;
   memcpyParams.dstPos   = make_cudaPos(0, 0, 0);
   memcpyParams.dstPtr   = make_cudaPitchedPtr(&result_h, sizeof(double), 1, 1);
   memcpyParams.extent   = make_cudaExtent(sizeof(double), 1, 1);
   memcpyParams.kind     = cudaMemcpyDeviceToHost;

   cudaGraphAddMemcpyNode(&memcpyNode, graph, nodeDependencies.data(), nodeDependencies.size(), &memcpyParams);
   nodeDependencies.clear();
   nodeDependencies.push_back(memcpyNode);

   cudaGraphNode_t    hostNode;
   cudaHostNodeParams hostParams = {0};
   hostParams.fn                 = myHostNodeCallback;
   callBackData_t hostFnData;
   hostFnData.data     = &result_h;
   hostFnData.fn_name  = "cudaGraphsManual";
   hostParams.userData = &hostFnData;

   cudaGraphAddHostNode(&hostNode, graph, nodeDependencies.data(), nodeDependencies.size(), &hostParams);
}

void cudaGraphsUsingStreamCapture(float  *inputVec_h,
                      float  *inputVec_d,
                      double *outputVec_d,
                      double *result_d,
                      size_t  inputSize,
                      size_t  numOfBlocks)
{
   cudaStream_t stream1, stream2, stream3, streamForGraph;
   cudaEvent_t  forkStreamEvent, memsetEvent1, memsetEvent2;
   cudaGraph_t  graph;
   double       result_h = 0.0;

   cudaStreamCreate(&stream1);
   cudaStreamCreate(&stream2);
   cudaStreamCreate(&stream3);
   cudaStreamCreate(&streamForGraph);

   cudaEventCreate(&forkStreamEvent);
   cudaEventCreate(&memsetEvent1);
   cudaEventCreate(&memsetEvent2);

   cudaStreamBeginCapture(stream1, cudaStreamCaptureModeGlobal);

   cudaEventRecord(forkStreamEvent, stream1);
   cudaStreamWaitEvent(stream2, forkStreamEvent, 0);
   cudaStreamWaitEvent(stream3, forkStreamEvent, 0);

   cudaMemcpyAsync(inputVec_d, inputVec_h, sizeof(float) * inputSize, cudaMemcpyDefault, stream1);

   cudaMemsetAsync(outputVec_d, 0, sizeof(double) * numOfBlocks, stream2);

   cudaEventRecord(memsetEvent1, stream2);

   cudaMemsetAsync(result_d, 0, sizeof(double), stream3);
   cudaEventRecord(memsetEvent2, stream3);

   cudaStreamWaitEvent(stream1, memsetEvent1, 0);

   reduce<<<numOfBlocks, THREADS_PER_BLOCK, 0, stream1>>>(inputVec_d, outputVec_d, inputSize, numOfBlocks);

   cudaStreamWaitEvent(stream1, memsetEvent2, 0);

   reduceFinal<<<1, THREADS_PER_BLOCK, 0, stream1>>>(outputVec_d, result_d, numOfBlocks);
   cudaMemcpyAsync(&result_h, result_d, sizeof(double), cudaMemcpyDefault, stream1);

   callBackData_t hostFnData = {0};
   hostFnData.data           = &result_h;
   hostFnData.fn_name        = "cudaGraphsUsingStreamCapture";
   cudaHostFn_t fn           = myHostNodeCallback;
   cudaLaunchHostFunc(stream1, fn, &hostFnData);
   cudaStreamEndCapture(stream1, &graph);
}

cudaGraphExec_t graphExec;
cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);

cudaGraphLaunch(graphExec, stream);

cudaGraph_t graph;

cudaStreamBeginCapture(stream);

kernel_A<<< ..., stream >>>(...);
kernel_B<<< ..., stream >>>(...);
libraryCall(stream);
kernel_C<<< ..., stream >>>(...);

cudaStreamEndCapture(stream, &graph);

cudaGraphExec_t graphExec;
cudaGraphInstantiate(&graphExec, graph, NULL, NULL, 0);
cudaGraphLaunch(graphExec, stream);

// Explicit upload after instantiation
cudaGraphInstantiate(&deviceGraphExec1, deviceGraph1, cudaGraphInstantiateFlagDeviceLaunch);
cudaGraphUpload(deviceGraphExec1, stream);

// Explicit upload as part of instantiation
cudaGraphInstantiateParams instantiateParams = {0};
instantiateParams.flags = cudaGraphInstantiateFlagDeviceLaunch | cudaGraphInstantiateFlagUpload;
instantiateParams.uploadStream = stream;
cudaGraphInstantiateWithParams(&deviceGraphExec2, deviceGraph2, &instantiateParams);

// Implicit upload via host launch
cudaGraphInstantiate(&deviceGraphExec3, deviceGraph3, cudaGraphInstantiateFlagDeviceLaunch);
cudaGraphLaunch(deviceGraphExec3, stream);

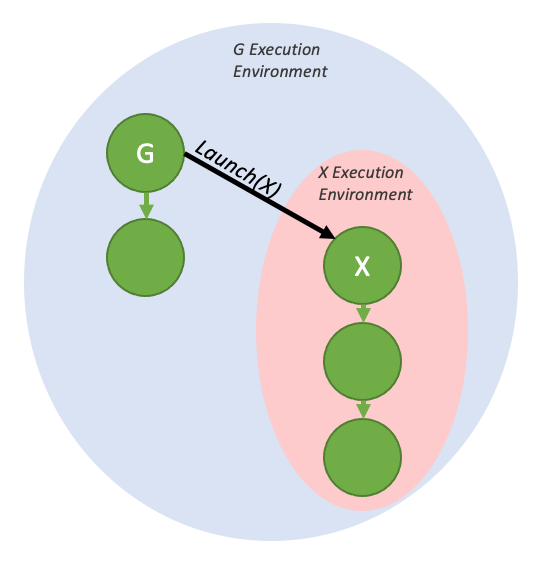

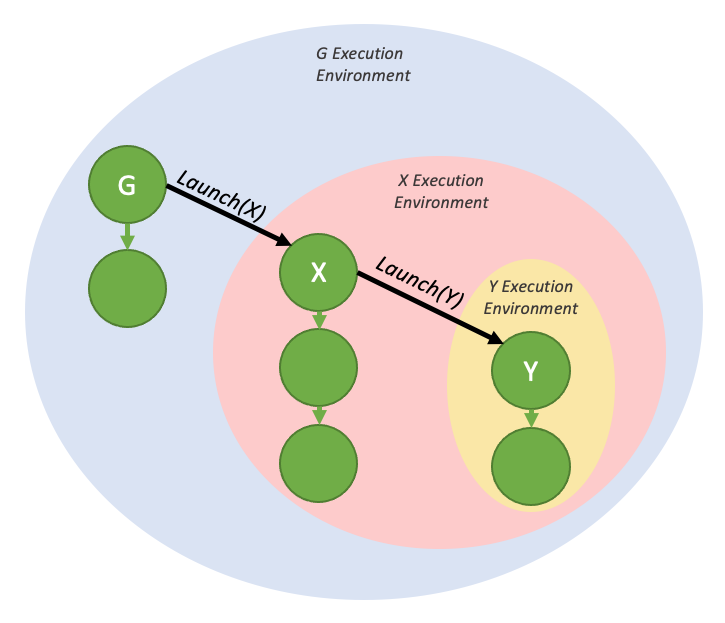

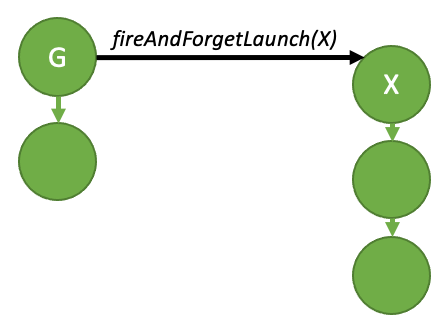

__global__ void launchFireAndForgetGraph(cudaGraphExec_t graph) {
    cudaGraphLaunch(graph, cudaStreamGraphFireAndForget);
}

void graphSetup() {
    cudaGraphExec_t gExec1, gExec2;
    cudaGraph_t g1, g2;

    // Create, instantiate, and upload the device graph.
    create_graph(&g2);
    cudaGraphInstantiate(&gExec2, g2, cudaGraphInstantiateFlagDeviceLaunch);
    cudaGraphUpload(gExec2, stream);

    // Create and instantiate the launching graph.
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
    launchFireAndForgetGraph<<<1, 1, 0, stream>>>(gExec2);
    cudaStreamEndCapture(stream, &g1);
    cudaGraphInstantiate(&gExec1, g1);

    // Launch the host graph, which will in turn launch the device graph.
    cudaGraphLaunch(gExec1, stream);
}

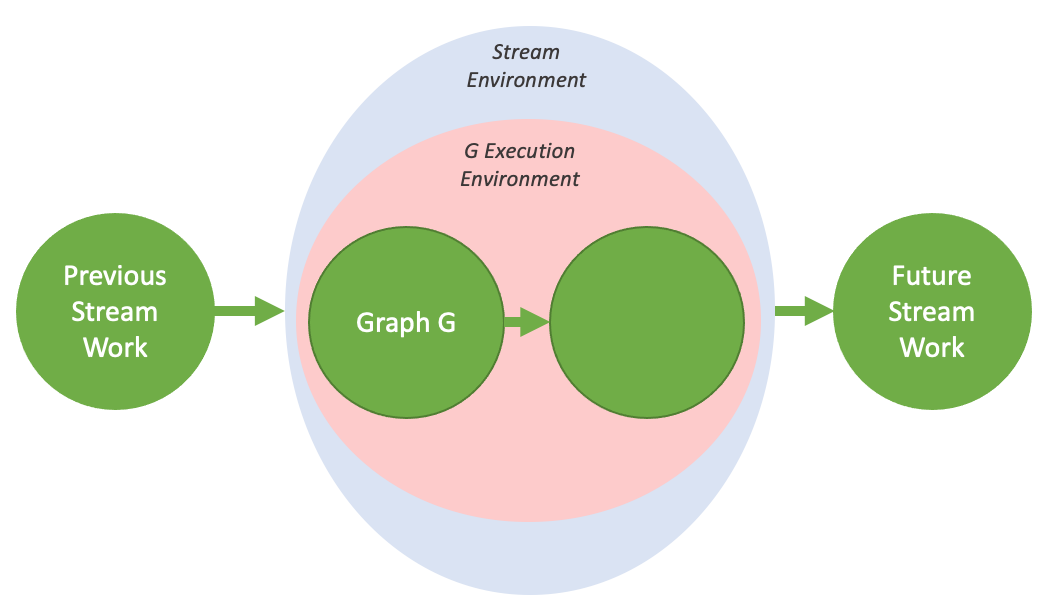

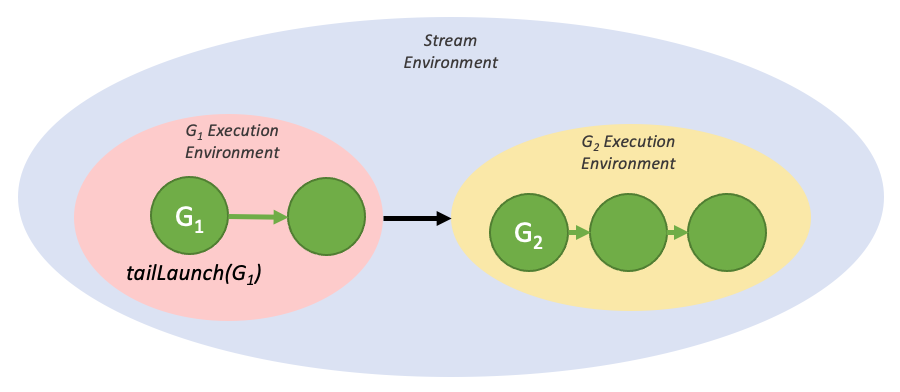

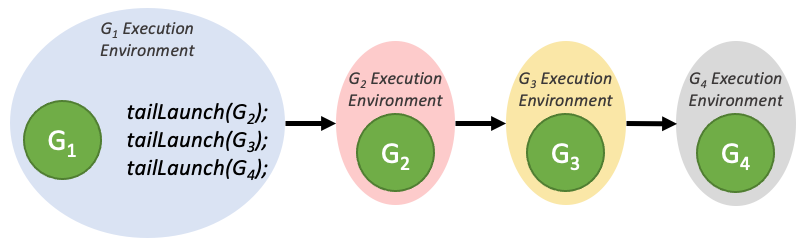

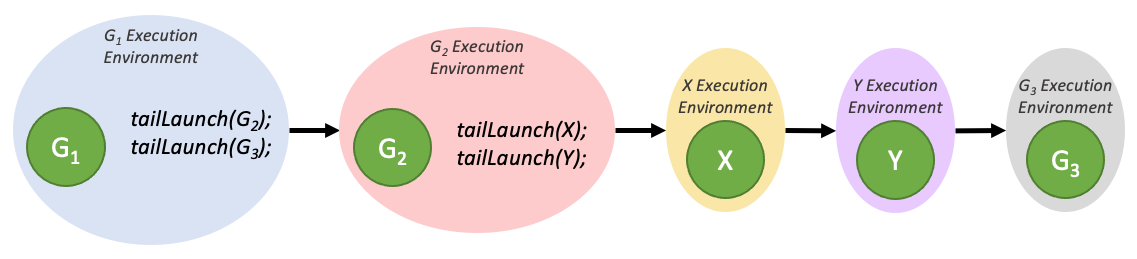

__global__ void launchTailGraph(cudaGraphExec_t graph) {
    cudaGraphLaunch(graph, cudaStreamGraphTailLaunch);
}

void graphSetup() {
    cudaGraphExec_t gExec1, gExec2;
    cudaGraph_t g1, g2;

    // Create, instantiate, and upload the device graph.
    create_graph(&g2);
    cudaGraphInstantiate(&gExec2, g2, cudaGraphInstantiateFlagDeviceLaunch);
    cudaGraphUpload(gExec2, stream);

    // Create and instantiate the launching graph.
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
    launchTailGraph<<<1, 1, 0, stream>>>(gExec2);
    cudaStreamEndCapture(stream, &g1);
    cudaGraphInstantiate(&gExec1, g1);

    // Launch the host graph, which will in turn launch the device graph.
    cudaGraphLaunch(gExec1, stream);
}

cudaGraphExec_t cudaGetCurrentGraphExec();

__device__ int relaunchCount = 0;

__global__ void relaunchSelf() {
    int relaunchMax = 100;

    if (threadIdx.x == 0) {
        if (relaunchCount < relaunchMax) {
            cudaGraphLaunch(cudaGetCurrentGraphExec(), cudaStreamGraphTailLaunch);
        }

        relaunchCount++;
    }
}

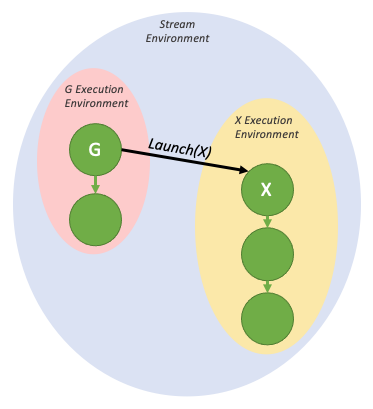

__global__ void launchSiblingGraph(cudaGraphExec_t graph) {
    cudaGraphLaunch(graph, cudaStreamGraphFireAndForgetAsSibling);
}

void graphSetup() {
    cudaGraphExec_t gExec1, gExec2;
    cudaGraph_t g1, g2;

    // Create, instantiate, and upload the device graph.
    create_graph(&g2);
    cudaGraphInstantiate(&gExec2, g2, cudaGraphInstantiateFlagDeviceLaunch);
    cudaGraphUpload(gExec2, stream);

    // Create and instantiate the launching graph.
    cudaStreamBeginCapture(stream, cudaStreamCaptureModeGlobal);
    launchSiblingGraph<<<1, 1, 0, stream>>>(gExec2);
    cudaStreamEndCapture(stream, &g1);
    cudaGraphInstantiate(&gExec1, g1);

    // Launch the host graph, which will in turn launch the device graph.
    cudaGraphLaunch(gExec1, stream);
}

// Library API with pool allocation
void libraryWork(cudaStream_t stream) {
    auto &resource = pool.claimTemporaryResource();
    resource.waitOnReadyEventInStream(stream);
    launchWork(stream, resource);
    resource.recordReadyEvent(stream);
}

// Library API with asynchronous resource deletion
void libraryWork(cudaStream_t stream) {
    Resource *resource = new Resource(...);
    launchWork(stream, resource);
    cudaLaunchHostFunc(
        stream,
        [](void *resource) {
            delete static_cast<Resource *>(resource);
        },
        resource,
        0);
    // Error handling considerations not shown
}

cudaGraph_t graph;  // Preexisting graph

Object *object = new Object;  // C++ object with possibly nontrivial destructor
cudaUserObject_t cuObject;
cudaUserObjectCreate(
    &cuObject,
    object,  // Here we use a CUDA-provided template wrapper for this API,
             // which supplies a callback to delete the C++ object pointer
    1,  // Initial refcount
    cudaUserObjectNoDestructorSync  // Acknowledge that the callback cannot be
                                    // waited on via CUDA
);
cudaGraphRetainUserObject(
    graph,
    cuObject,
    1,  // Number of references
    cudaGraphUserObjectMove  // Transfer a reference owned by the caller (do
                             // not modify the total reference count)
);
// No more references owned by this thread; no need to call release API
cudaGraphExec_t graphExec;
cudaGraphInstantiate(&graphExec, graph, nullptr, nullptr, 0);  // Will retain a
                                                               // new reference
cudaGraphDestroy(graph);  // graphExec still owns a reference
cudaGraphLaunch(graphExec, 0);  // Async launch has access to the user objects
cudaGraphExecDestroy(graphExec);  // Launch is not synchronized; the release
                                  // will be deferred if needed
cudaStreamSynchronize(0);  // After the launch is synchronized, the remaining
                           // reference is released and the destructor will
                           // execute. Note this happens asynchronously.
// If the destructor callback had signaled a synchronization object, it would
// be safe to wait on it at this point.
